Strucsol LocTie 9mm Diameter (remedial wall ties) - Strucsol

£76.00 - £1,320.00
excluding VAT
reward points

Choose an option from the list above...

Oh No! This product is out of stock. Would you like to know when it's avaliable again?

Product details


You are best using a 9mm tie when you have a very high load requirement or a really harsh environment. 9mm ties are much stronger than 8mm ties, however for most wall tie requirements, 8mm ties will do the job for you at a much cheaper cost. See here

Remedial cavity wall tie for replacement of corroded and failed cavity wall ties


  • Works in any combination of Brick, Timber, AAC, concrete.
  • Smaller pilot holes mean less visible damage to the host materials

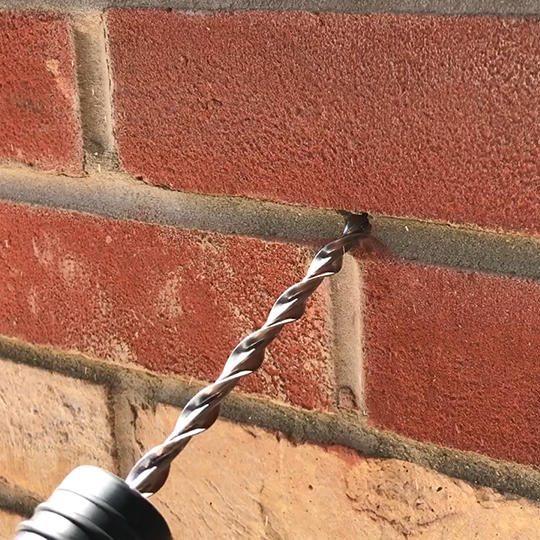

  • Can be secretly fixed (See below video for instructions)
  • Limited opportunities for installer error
  • Can be installed by non-skilled operators
  • High grade stainless steel, appropriate for coastal regions
  • No resin required for fixing
  • No mechanical expansion
  • The installation process is very much "fire and forget"
  • Each tie takes no longer than 10 seconds to fix


  • Cavity wall tie for all materials and cavity widths of up to 150mm
  • For fixing timber to lightweight concrete block
  • The hardened fins of the LocTie mechanically fix into the host material in a similar way you would expect a wood screw to work in timber

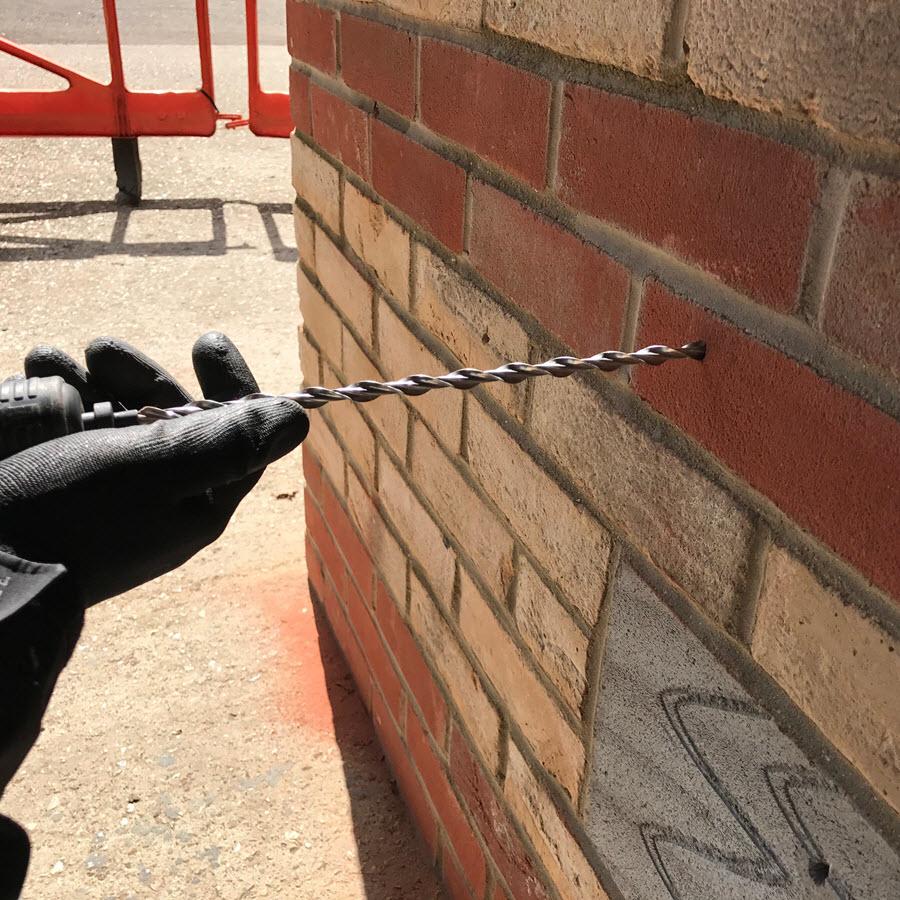

  • The tie is hammered into a predrilled pilot hole and countersunk beneath the surface of the wall with 1 simple tool attachment fitted to a light SDS type drill.
